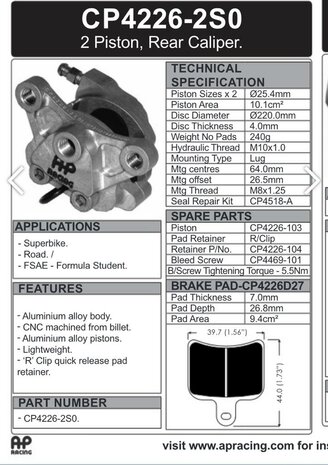

CP4226-2S0
Typical Application:
- Grand Prix.
- Superbike.
- Road rear brake.
- Formula Student/SAE.
Features:
- Lug Mount.
- Two piece aluminium body.
- Machined from billet.
- Aluminium pistons.
- Hard anodised surface treatment.
Part Number:
CP4226-2S0
| Piston Diameter mm |
25.4 x 2 |
| Piston Area cm² |
10.1 |
| Disc Diameter Max mm |
220 |
| Disc Thickness mm |
4 |
| Weight Kg |
0.24 |
| Hydraulic Threads |
M10x1.0 |
| Mounting Centres mm |
64 |
| Offset mm |
26.5 |
| Mounting Threads |
M8x1.25 |
| Seal Repair Kit |
CP4518-A |
| Bleed Screw Tightening Torque |
5.5Nm (4lbs/ft) |
| Spare Parts |
Part Numbers |
| Pistons |
CP4226-103 |
| Pad Retainer |
R/Clip - CP4226-104 |
| Bleed Screw |
CP4469-101 |
| Pad Family |
CP4226D27
|
